Android Infrared Touch Computer Touch Interactive Flat Smart Board TV LED Miboard Kiosk Conference Meeting Whiteboard Display LCD Screen Ifp 110" Panel

Overview

Basic Info.

Model NO.	IFP110
Warranty	3 Years
Brightness	500CD
Certificate	CE, FCC, RoHS
Color	Black
Touch Points	20
OS	Android 8.0 & Windows
Certificates	CE, FCC, RoHS
Resolution	3840*2160
Technology	Infrared Touch
Transport Package	Kraft Paper Carton
Specification	1846× 215× 1180mm
Trademark	MiBoard
Origin	China
HS Code	8471414000
Production Capacity	10000 Units Per Year

Product Description

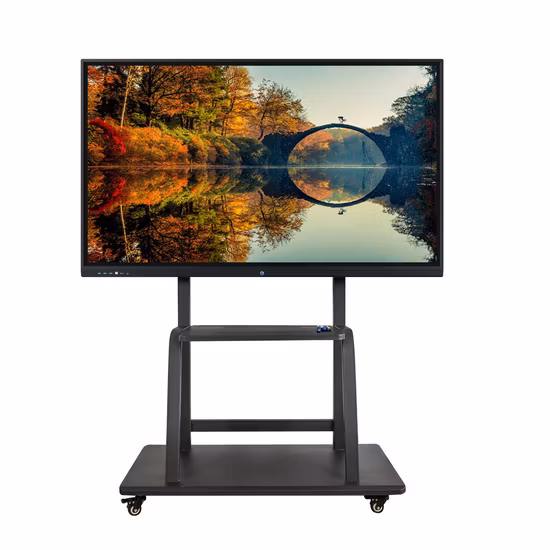

MiBoard IFP is an interactive touch screen, which uses infrared technology. It replaces projector and traditional interactive whiteboard. It creates smooth and natual writing experience.Our IFP integrates with Eshow, which can mirror casting mobile phone. iPad, tablets and laptops wirelessly to MiBoard IFP.

Item	Description	IFP110
Panel	Diagonal Size	110"
	Backlight Type	D-LED
	Aspect Ratio	16:09
	Resolution	3840*2160
	Brightness(typ)/(min)	450
	Display Size(mm)	2,434*1,367
	Contrast Ratio (typ)/(min)	1400:1
	Response Time(typ)/(min)	5ms
	Depth of Color	10 bit
	Viewing Angle	178°
	Life time	>=50,000 hours
Touch	Touch Technology	High-precision Infrared Technology
	Glass	4mm Anti-glare toughened glass
	Touch Points	20 Points
	Touch Accuracy	<=1mm
	Response time	<8ms
Android	CPU	Quad-Core ARM Cortex-A55
	GPU	Mali-G52
	RAM&ROM	4GB/32GB
	Version	Android 11.0
Power	Power Supply	110-240V 50/60 Hz
	Power Consumption	<=650W
Ports	Back Side Ports	HDMI IN*2, USB2.0*1, USB3.0*1, Touch USB*1,Optical Out*1 VGA In*1, PC Audio In*1, Earphone Out*1, AV In*1,AV Out*1,RS232*1, YPBPR*1, RJ45 In*1, SPDIF*1
	Front Ports	HDMl IN'1, Touch Out'1, USB 3.0'3,Type-c*1
Size	Panel Size(mm)	2500*94*1463
	Package Size(mm)	2680*270*1655
Weight	Net Weight(KG)	100
	Gross Weight(KG)	130
Speaker	Audio Out Power 15W*2 8Ω
Environment	Working Temperature - 0ºC~40ºC, Operational humidity≤80% RH,Storage temperature:-10ºC~60ºC, Altitude Below 5000 meters.
Accessories	Remote Control*1, Power Cord*1(3m), HDMI cable(3m),Touch Cable*1 (2m), Passive pen*1, Wall mount*1
Warranty	3 years return workshop
Special Features	Built with Google Play, Enable Annotation in all Channels, Screenshot,Gesture Eraser, Smart Writing,Dual Pens with two colors writing.
Components	Power Cable, HDMI Cable , Touch Cable, Controller, Wall Hanger, Passive Pen.
OPS (Optional)	I5, 8th/9th/10th Gen, RAM 8GB/16GB, SSD 256GB, Windows 10/11 Genius Version,Dual Band 2.4G/5G WIFI , Bluetooth 4.2 , LAN 1000MB
Optional Components	Movable Stand, Sound Bar, Pen with two tips, OPS , Pointer.

Certifications

Packaging & Shipping

Warranty
Two years limited warranty. Warranty will not apply if the product has been tampered with, disassembled or damaged by misuse, accident, modification or unauthorized repair.
